2016-09-15 - 26998 - Break Fix - Disable PO Header Text Segment in ZCHR IDOC CH Robinson #ProductionBreakFix #chr
2016-09-15 - 26998 - Break Fix - Disable PO Header Text Segment in ZCHR IDOC
Problem Summary
Disable PO Header Text Segment in ZCHR IDOC
Admin Info
| Purpose |
Disable PO Header Text in ZCHR IDOC |
| Requested by |
Jingsha |
| Issue Date |
09-15-2016 |
| Resolved by |
Damodhier, Adithya |
| Resolved Date |
09-19-2016 |
| Document Status |
Complete |
Detailed Problem Description
(Include Screen Shots if required )When PO Header text is maintained with special characters the IDOC gets failed and the information is not moved to CHR. Hence POs are not making to CHR system.
Stop sending header text because CHR does not have space to hold the header text information with the special character issue.
Stop sending the header text at all for CHR IDOCs
Solution Analysis and Recommendations
(Include Screen Shots if required)Suppress the PO Header Text segment in the IDOC so that the text data shall not be triggered in the Creation and Change IDOCs
Here is one of the Example form Production environment:

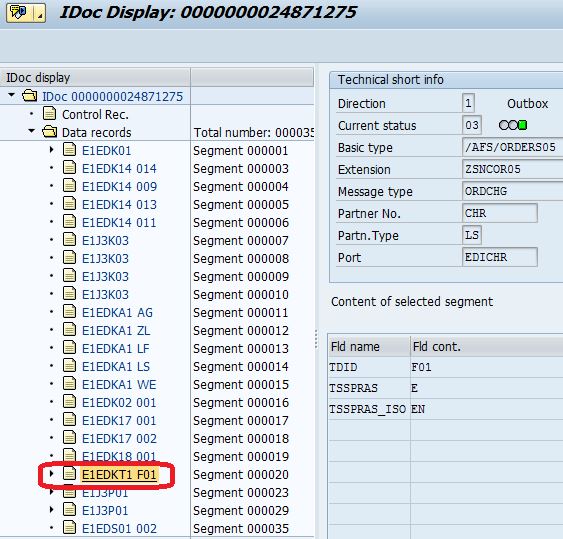

Segment "E1EDKT1" hold the Text information in the IDOC as shown in below scree shot:
Disable the Segment "E1EDKT1 FO1" in All CHR IDOCs (ORDERS & ORDCHG) so that PO Header data is not sent to CHR system.
| Test ID |
Test Scenario |
Expected Results |
| CHRTXT1 |
Create a CHR PO with Header text with special characters |
The PO Header text segment shall not be shown up in the create (ORDERS) IDOC for ZHCR |
| CHRTXT2 |
Change a CHR PO which has Header text with special characters |
The PO Header text segment shall not be shown up in the create (ORDCHG) IDOC for ZHCR |
| CHRTXT3 |
Create/Change a SNC PO with Header text in the PO |
The PO Header text segment shall be shown up in the create (ORDCHG) IDOC for ZSNC |
| CHRTXT4 |
Check if the other outputs are getting the Text information like ZNU4 |
Do the Validation |
| CHRTXT5 |
Validate the data in the CHR IDOC and test the data in the IBM - CHR system side |
Do the Valdiation |
Added logic in Idoc Exit ZXM06U33 to suppress the below segments:
- Header segments:
- E1EDKT1
- E1EDKT2
- E1EDKT3
- E1EDKT4
- Item segments:
- E1EDPT1
- E1EDPT2
- E1EDPT3
Release Information
Provide link here to Release Notes if Technical Objects were changed
2016-08-05 - 26998 - Rel Notes - Disable PO Header Text Segment in the CHR PO IDOC
